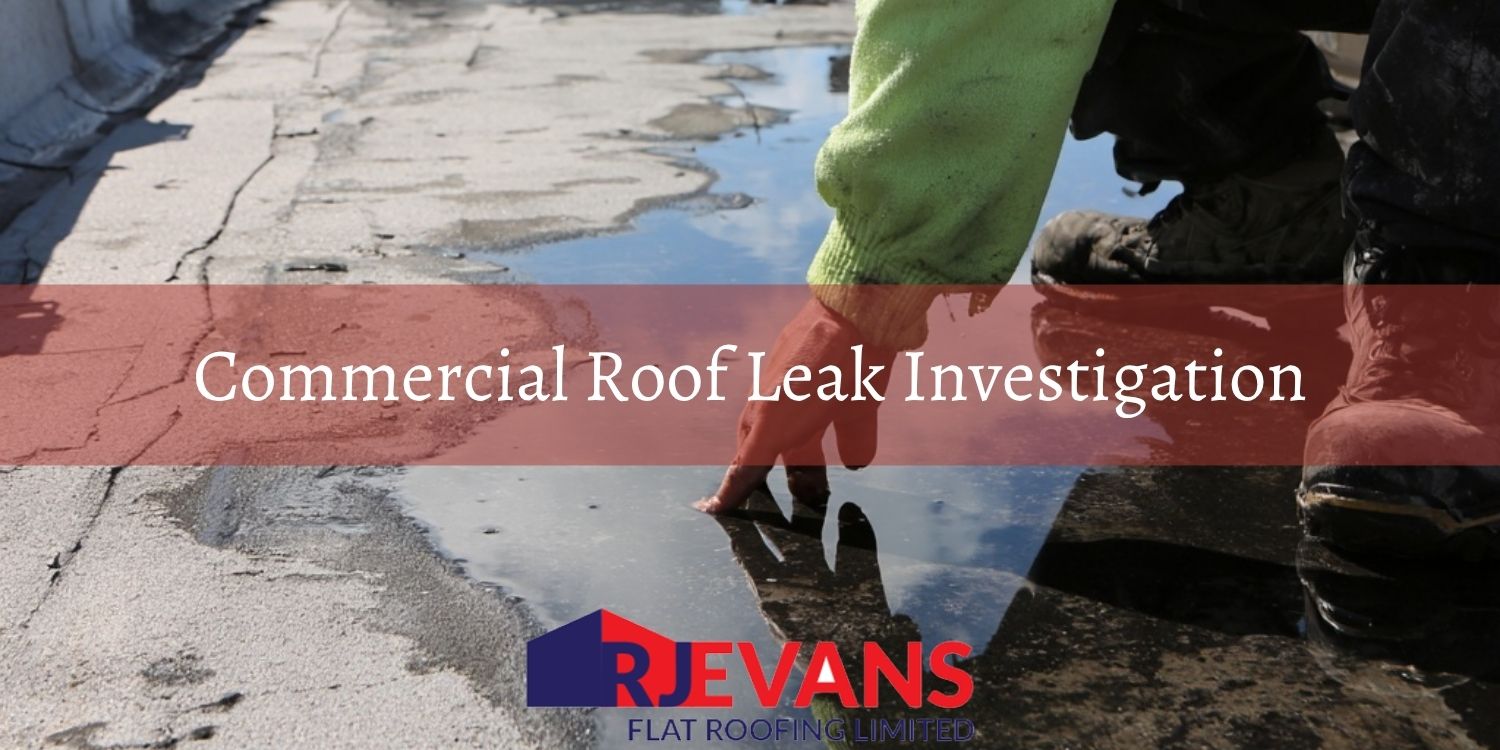

RJ Evans provides commercial roof leak investigation to identify the source, pathway, cause, and extent of water ingress affecting commercial roofing systems. Commercial roof leak investigation is the systematic assessment of the roof covering, waterproofing system, drainage, flashings, penetrations, interfaces, roof details, internal moisture evidence, and associated roof components to determine how water is entering the building and what corrective work is required. Water appearing inside a commercial building does not necessarily identify the point where it entered the roof. Moisture can travel through insulation, roof build-ups, structural decks, joints, cavities, penetrations, and adjoining construction before becoming visible internally. The investigation therefore considers the relationship between internal evidence and the external roof condition rather than treating staining, dripping, or dampness as confirmation of the original entry point.
The assessment may include the primary roof covering, seams and laps, flashings, upstands, outlets, gutters, valleys, rooflights, penetrations, plant supports, perimeter details, interfaces with walls and adjoining roofs, previous repairs, insulation, roof decks, and drainage conditions. Internal staining, active leakage, damp materials, ceiling damage, and other moisture evidence are assessed alongside these external conditions to establish possible entry points, water pathways, and the extent of any affected roof components. Where visual inspection does not establish the source reliably, further investigation may be required to determine whether water ingress originates from an isolated defect, multiple defects, failed detailing, drainage problems, an adjoining building interface, or concealed deterioration within the roof build-up. The extent of investigation should be sufficient to distinguish the visible symptom of leakage from the condition responsible for it.
RJ Evans carries out commercial roof leak investigation to establish an evidence-based corrective scope before remedial work is undertaken. The objective is to identify the defect responsible for water ingress, determine whether surrounding roof components remain serviceable, and define the work required to restore reliable water exclusion without concealing unresolved defects or repeatedly repairing the internal consequences of an unidentified roof failure.
A commercial roof leak investigation may be required where water ingress is present or suspected but the defect responsible cannot be confirmed reliably from the visible roof condition alone. Investigation is particularly important where the source is uncertain, previous repairs have not resolved the problem, leakage depends on particular weather conditions, several moisture symptoms are present, complex roof details create multiple possible entry routes, or water may have spread into concealed roof components.
Commercial roof leak investigation may be required where:
Unconfirmed water-entry point → the source and pathway of ingress must be established before corrective work is specified.
Internal staining, dripping, damp ceilings, wet finishes, or moisture around structural components confirm that water is reaching the building interior but do not identify where it entered the roofing system. Water may enter through a seam, flashing, penetration, outlet, upstand, rooflight, perimeter detail, or adjoining interface before travelling through the roof build-up and appearing internally at another location. The external roof condition must therefore be assessed against the internal moisture evidence to identify the defect and trace the likely water pathway.
Recurring leakage after repair → the previous diagnosis and corrective scope must be reassessed.
A previous repair may have corrected a visible defect without confirming that it was the principal source of the leak. Water may also be entering through another nearby defect, bypassing the repaired area through an adjoining interface, or continuing to drain from moisture already retained within the roof build-up. Repeated leakage requires the roof to be investigated as a complete assembly so that further repairs address the cause of ingress rather than another unconfirmed surface defect.
Condition-dependent leakage → the conditions that permit water entry must be identified and related to the roof defect.
Some defects only leak during prolonged rainfall, intense rainfall, wind-driven rain, standing water, restricted drainage, or weather approaching from a particular direction. A roof may therefore appear watertight during a visual inspection while containing a defect that becomes active only when water reaches a specific level, direction, joint, or interface. The timing of the leakage, recent weather conditions, drainage behaviour, ponding, and exposure of vulnerable details should be considered when establishing the likely entry route.
Multiple moisture symptoms → the investigation must determine whether the defects are separate, connected, or evidence of wider roof failure.
Several internal leak positions may result from independent defects, one external entry point feeding multiple moisture pathways, or more extensive deterioration within the roofing system. Water can travel laterally through insulation, along deck profiles, through joints, or around structural and service components before appearing at several internal locations. The investigation should relate each moisture symptom to the corresponding roof zones and determine whether the problem is localised or affects a wider section of the roof.
Multiple potential entry routes → the defective interface must be isolated systematically.
Commercial roofs frequently contain rooflights, vents, ducts, pipes, plant supports, access hatches, movement joints, outlets, gutters, valleys, parapets, wall junctions, changes in roof level, and interfaces between different roofing systems. Where leakage occurs close to several of these details, proximity alone does not confirm which component has failed. Each potential entry route should be assessed for deterioration, discontinuity, inadequate termination, failed sealing, movement, or loss of waterproofing continuity until the defect responsible can be distinguished from surrounding serviceable details.
Suspected concealed moisture → the extent and condition of affected roof components must be established before the corrective scope is defined.
Water entering through a localised roof defect may spread beyond the visible leak area through insulation, cover boards, deck joints, vapour-control layers, fixings, and other concealed components. Wet insulation may lose thermal performance, moisture may contribute to deterioration of boards or decks, and retained water may continue to migrate after the original entry point has been repaired. Where concealed moisture is suspected, further investigation may be required to determine which components remain dry and serviceable and which must be repaired, removed, or replaced.
The purpose of the investigation is to establish enough evidence to define the next corrective action. Once the source, pathway, and extent of water ingress have been identified, the roof can be assessed to determine whether the defect requires local repair, opening-up and replacement of affected components, drainage or detailing correction, wider refurbishment, or another form of remedial work.
Visual inspection may identify an obvious defect where the condition of the roof corresponds clearly with the location and behaviour of the water ingress. Further investigation is required where the visible roof condition does not provide enough evidence to establish the source, pathway, extent, or underlying cause of the leak with reasonable confidence.
The level of investigation should be proportionate to the uncertainty surrounding the defect. The objective is to obtain enough evidence to distinguish between possible water-entry routes, determine whether concealed components have been affected, and avoid specifying corrective work on the basis of an unconfirmed visual assumption.
Further investigation may be required where:
No confirmed external defect → additional investigation is required to locate the water-entry point.
A roof may contain no obvious opening, split, failed flashing, displaced component, or other visible defect that corresponds with the internal leak location. The source may instead be a small discontinuity, concealed junction, intermittent opening, defective termination, or detail positioned away from the point where water becomes visible internally. Where visual inspection does not produce a credible relationship between an external defect and the reported ingress, the investigation should be extended rather than assigning the leak to the nearest visible imperfection.
Multiple plausible defects → the potential entry routes must be differentiated before repair is specified.
An ageing or deteriorated commercial roof may contain several defects within the same area, including failed seams, cracked coatings, defective flashings, open joints, vulnerable penetrations, damaged upstands, or poorly sealed interfaces. The presence of a defect does not prove that it is admitting the water responsible for the internal leak. Further investigation should establish which defects are active water-entry points and which represent unrelated deterioration so that the corrective scope addresses the actual cause of ingress.
Leak behaviour inconsistent with the visible defect → the assumed source must be tested against the observed conditions.
The reported pattern of water ingress should be consistent with the proposed source. A defect that would be expected to admit water during ordinary rainfall may be an unlikely explanation where leakage occurs only during wind-driven rain, prolonged storms, periods of ponding, drainage surcharge, or rainfall from a particular direction. Where the observed defect does not explain the timing, duration, or conditions under which the leak occurs, another entry route, drainage condition, or adjoining interface may be involved.
Possible concealed water migration → the pathway must be traced beyond the visible leak location.
Water can move laterally through insulation, follow profiled roof decks, travel along structural members, pass through joints, migrate around penetrations, or enter cavities before becoming visible inside the building. This can create substantial separation between the original point of entry and the internal symptom. Where the construction provides concealed routes for water migration, further investigation should consider the roof build-up and surrounding building elements rather than relying solely on the position of the internal leak.
Unknown concealed moisture extent → the affected roof area must be established before the corrective scope is finalised.
A localised entry point does not necessarily produce localised moisture damage. Water may spread through insulation, cover boards, deck interfaces, vapour-control layers, or other concealed materials beyond the visibly defective area. Surface inspection alone may therefore underestimate the extent of affected construction. Where retained components could contain moisture, further investigation may be required to distinguish dry and serviceable areas from materials that have become wet, deteriorated, or unsuitable for retention.
Uncertain or layered roof construction → the existing build-up must be established before the source and corrective scope can be confirmed reliably.
Commercial roofs may contain several generations of membranes, insulation, coatings, overlays, repairs, deck types, or previous refurbishment systems. These layers can conceal earlier defects, create unexpected water pathways, retain moisture between systems, or make it difficult to determine which components remain continuous and serviceable. Where drawings, previous specifications, or visible inspection do not establish the existing roof construction reliably, opening-up or other further investigation may be required to confirm the actual build-up and condition of concealed materials.
Further investigation should continue only as far as necessary to resolve the uncertainty affecting the diagnosis. Once the source of ingress, likely water pathway, moisture extent, and relevant roof construction have been established sufficiently, the findings can be used to define an evidence-based corrective scope.
Diagnostic testing or opening-up may be required where visual inspection and non-intrusive assessment do not provide enough evidence to confirm the source of water ingress, distinguish between possible entry routes, establish the extent of concealed moisture, or determine the condition of the existing roof build-up. The investigation should be targeted at the specific uncertainty that prevents a reliable diagnosis or corrective scope from being established.
Testing and opening-up should not be undertaken simply because a roof is leaking. Each investigative step should answer a defined question about the suspected defect, water pathway, moisture condition, roof construction, or suitability of retained components.
Diagnostic testing or opening-up may be required where:
Suspected but unconfirmed defect → targeted investigation is required before the detail is treated as the source of ingress.
A seam, flashing, penetration, rooflight, outlet, upstand, perimeter detail, or adjoining interface may appear defective without proving that it is responsible for the reported leak. A detail may also appear visually serviceable while containing a small discontinuity that becomes active only under particular conditions. Where the relationship between the suspected defect and the internal moisture evidence remains uncertain, further investigation may be required before corrective work is specified.
Multiple plausible entry routes → the potential sources must be isolated and differentiated systematically.
Commercial roofs may contain several defects or vulnerable details within the same roof area. Failed seams, flashings, penetrations, rooflights, outlets, upstands, joints, and adjoining interfaces may all provide credible routes for water entry. The presence of several possible defects makes it unreliable to attribute the leak to one condition by proximity alone. Targeted investigation should distinguish the active water-entry route from defects or deterioration that are present but unrelated to the reported ingress.
Condition-dependent leakage → investigation may need to reproduce or isolate the circumstances that activate the defect.
Some defects admit water only during prolonged rainfall, intense rainfall, wind-driven rain, ponding, restricted drainage, changes in water level, or exposure from a particular direction. The roof may therefore appear dry and apparently serviceable during inspection while the defect remains capable of leaking under different conditions. Where appropriate, targeted diagnostic testing may be used to establish whether a suspected detail becomes an active water-entry point under the conditions associated with the reported leakage.
Unknown moisture distribution → the affected area must be investigated before the extent of remedial work is defined.
Water entering through a localised defect may migrate beneath the waterproofing layer and spread through insulation, cover boards, deck interfaces, vapour-control layers, or other concealed components. The visible surface condition may provide little evidence of how far moisture has travelled. Where the moisture extent could affect which materials are retained, repaired, or replaced, further investigation may be required to distinguish affected roof areas from surrounding dry and serviceable construction.
Unknown roof build-up → targeted opening-up may be required to establish the construction and condition of concealed components.
An existing commercial roof may contain several membranes, insulation layers, cover boards, vapour-control layers, deck types, fixings, previous overlays, coatings, or repair materials that cannot be identified reliably from the exposed surface. Targeted opening-up can establish the sequence, thickness, attachment, moisture condition, and physical state of concealed roof components where this information is necessary for diagnosis. Investigative openings should be located deliberately, recorded, and reinstated so that the waterproofing integrity of the roof is maintained.
Corrective strategy dependent on retained construction → concealed conditions must be confirmed before the remedial system is specified.
A local repair, overlay, partial replacement, or wider refurbishment strategy may depend on existing roof components being dry, stable, adequately supported, compatible, and suitable for retention. Where these conditions cannot be established from the surface, further investigation should be completed before the corrective scope is finalised. This prevents remedial waterproofing from being installed over wet insulation, unstable substrates, deteriorated decks, incompatible materials, or concealed defects that could remain active beneath the completed work.
Diagnostic testing and opening-up should continue only as far as necessary to resolve the uncertainty affecting the diagnosis or proposed corrective strategy. Once the active water-entry route, moisture extent, roof build-up, and condition of relevant retained components have been established sufficiently, the findings can be used to determine the appropriate corrective scope.
Localised repair may be appropriate where the investigation identifies a defined water-entry point, confirms that the defect is limited in extent, and establishes that the surrounding roof construction remains dry, stable, compatible, and serviceable. The corrective work should address the defect responsible for the water ingress while preserving unaffected roof components that remain suitable for continued use.
A local repair should not be selected solely because one visible defect has been found. The investigation must establish that the identified defect explains the reported leakage, that moisture has not spread materially beyond the affected area, and that no wider roof condition remains that would continue to permit water ingress or undermine the repair.
Localised roof repair may be appropriate where:
Confirmed water-entry point → the corrective work can be directed at the defect responsible for the leak.
Localised repair should be based on a defect that has been identified through the investigation as the probable source of the reported water ingress. This may include an open seam, split membrane, failed flashing, defective penetration, leaking rooflight detail, failed outlet connection, damaged upstand, open perimeter joint, or another defined discontinuity in the waterproofing system. The relationship between the defect, the internal moisture evidence, and the observed behaviour of the leak should be sufficiently clear before corrective work is limited to that area.
Geographically limited roof defect → corrective work may remain confined to the affected area.
An isolated puncture, split, failed lap, defective termination, damaged flashing, deteriorated seal, or localised interface failure does not necessarily indicate failure of the wider roofing system. The investigation should establish that the defect has defined boundaries and is not one visible example of widespread seam deterioration, membrane failure, defective detailing, or broader deterioration across the roof. Where the failure remains localised, surrounding serviceable construction can normally be retained.
Limited moisture extent → affected components can be corrected without widening the intervention unnecessarily.
Water ingress may remain sufficiently localised for repair where the affected insulation, cover boards, deck components, or adjoining materials can be clearly distinguished from surrounding dry and serviceable construction. Wet, damaged, or deteriorated components within the repair area should be removed or replaced where required. Where moisture has migrated substantially beyond the identified defect, sealing the entry point alone may leave affected materials concealed within the roof and a wider corrective scope may be necessary.
Stable surrounding waterproofing → the repaired area can continue to function within the retained roof system.
The membrane, coating, sheet system, substrate, flashings, joints, and adjoining details surrounding the defect must remain sufficiently stable to support the repair and continue performing after the work is completed. Widespread brittleness, detachment, cracking, open seams, loss of adhesion, repeated patching, or advanced surface deterioration may indicate that the leak has occurred within a roofing system that is no longer suitable for isolated repair. A local intervention should not depend on surrounding materials that are themselves failing or approaching widespread loss of serviceability.
Compatible repair interface → waterproofing continuity can be restored without creating a new vulnerable detail.
The repair materials and method must be compatible with the retained roofing system and capable of forming a durable connection to the existing construction. Corrective work may require removal of failed materials, cleaning and preparation, reinforcement, local replacement, renewed flashings or terminations, reinstatement of laps, or reconstruction of the affected waterproofing detail. The completed repair should restore continuity across the defect and connect reliably with adjoining roof areas without depending on temporary sealants, unsupported patches, or incompatible materials.
Isolated defect with no continuing wider failure → local repair can provide a complete corrective response.
The investigation should confirm that the identified defect is not accompanied by unresolved drainage failure, widespread seam deterioration, multiple active leaks, defective adjoining interfaces, extensive concealed moisture, unstable substrates, or broader failure of the roof covering. A technically sound repair to one entry point will not resolve the problem where another condition continues to admit water, directs water towards the repaired area, or compromises the surrounding construction. Localised repair is appropriate only where the defined intervention addresses the material cause of the leakage within an otherwise serviceable roof assembly.
Where these conditions are satisfied, a defined local repair may restore waterproofing performance without unnecessary intervention to serviceable roof areas. Where the defect forms part of wider deterioration, moisture extends beyond the repair zone, surrounding roof materials are no longer dependable, or several conditions contribute to the leakage, the corrective scope should be expanded beyond localised repair.
Partial or complete roof replacement is required where the investigation establishes that defective, moisture-damaged, unstable, or deteriorated roof components cannot be retained reliably within the corrected roofing system. The extent of replacement depends on whether the identified deterioration remains confined to a defined roof section or affects the roofing system as a wider assembly.
Partial roof replacement is appropriate where deterioration is too extensive for localised repair but remains confined to a clearly defined roof area. This may include one roof zone, drainage line, rooflight band, perimeter area, extension, plant area, gutter section, valley, or group of moisture-affected insulation bays.
Partial roof replacement may be required where:
The defective section is removed and reconstructed before being connected to the retained roof through compatible waterproofing, insulation, drainage, flashing, and termination details. Partial replacement preserves serviceable roof areas while removing the components that the investigation has established cannot remain reliably within the corrected roofing system.
Complete roof replacement is required where the investigation identifies deterioration, moisture damage, instability, repeated failure, or unsuitable construction affecting the roofing system as a complete assembly. Replacement should be selected where retaining the existing roof would leave widespread defective materials in place, conceal continued moisture-related deterioration, or provide an unreliable basis for further repair or refurbishment.
Complete roof replacement may be required where:
Complete replacement allows the existing roof build-up to be removed, concealed conditions to be exposed, and defective waterproofing, insulation, substrates, decks, fixings, and associated components to be repaired or replaced. The new roof can then be designed and installed as one coordinated system incorporating suitable waterproofing, insulation, vapour control, drainage, penetrations, rooflights, perimeter details, interfaces, and operational requirements.
RJ Evans determines the appropriate corrective pathway by assessing the commercial roof as a complete assembly. Where the investigation identifies an isolated defect and the surrounding roof remains dry, stable, compatible, and serviceable, localised repair may restore waterproofing performance. Where deterioration or moisture damage affects a defined roof section that cannot be retained reliably, partial replacement can remove and reconstruct the affected area while preserving serviceable roof components. Where deterioration, moisture, instability, or repeated failure affects the roofing system as a whole, complete roof replacement is required to restore reliable water exclusion and provide a coordinated long-term roofing solution.
